Claudebox

Rendering

An agent that can only emit plain text has to describe its diagram to you. Claudebox draws it. The chat is a full document surface, so the answer arrives in whatever shape the answer actually has.

Text

Replies render as GitHub-flavored markdown: headings, lists, tables, task lists, block quotes, strikethrough, footnotes. Inline and fenced code is syntax-highlighted, by file extension where the content names one and by detection where it does not. LaTeX math renders through KaTeX, inline and display.

Markdown-shaped tool output renders as formatted text rather than raw source, and hovering it reveals a toggle that switches back to the highlighted source, plus a copy button that takes the raw markdown.

Messages may also carry common inline and block HTML - collapsible sections, keyboard keys, definition lists, figures, tables with merged cells - and it appears as real formatting. What cannot appear is anything that would execute: scripts, inline event handlers, javascript: links, embedded frames and standalone vector graphics are stripped before the message is drawn.

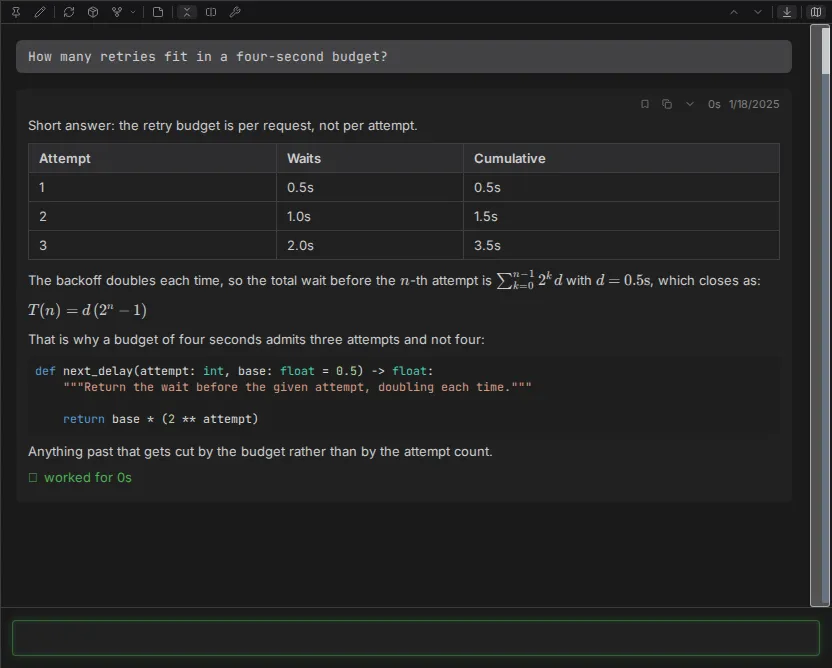

One reply carrying a table, inline and display mathematics, and a syntax-highlighted Python function

Diffs

An edit shows as a diff, and consecutive changed lines are compared word by word so you see the characters that moved rather than two whole lines painted red and green. Unpaired additions and removals highlight whole-line.

An edit rendered as a diff, with the characters that actually changed highlighted inside the changed lines

Paths

File paths in tool output, messages and code blocks resolve against the workspace and become clickable. Clicking copies the absolute path. With an editor configured, Alt-clicking opens the file there instead - at the right line when the tool knew one.

Configure it with [editor] url_template; without it, Alt-click just copies.

Diagrams

A ```mermaid fence renders as a diagram - whatever diagram types the bundled Mermaid supports, which is most of what Mermaid documents.

  • Click a diagram to open it in a zoom and pan overlay, which opens showing the whole thing at its natural size rather than stretched to fill.
  • Zoom, fit and directional controls sit in the overlay's corner. +, - and the arrow keys do the same, the wheel zooms about the pointer, and dragging pans.
  • A toggle switches any diagram between the rendered picture and its highlighted source.
  • A diagram that cannot be drawn says so, in a notice above its own source, naming the reason - rather than vanishing or leaving a blank frame.

That last point matters more than it sounds. A silently-failed diagram reads as an answer the agent never gave.

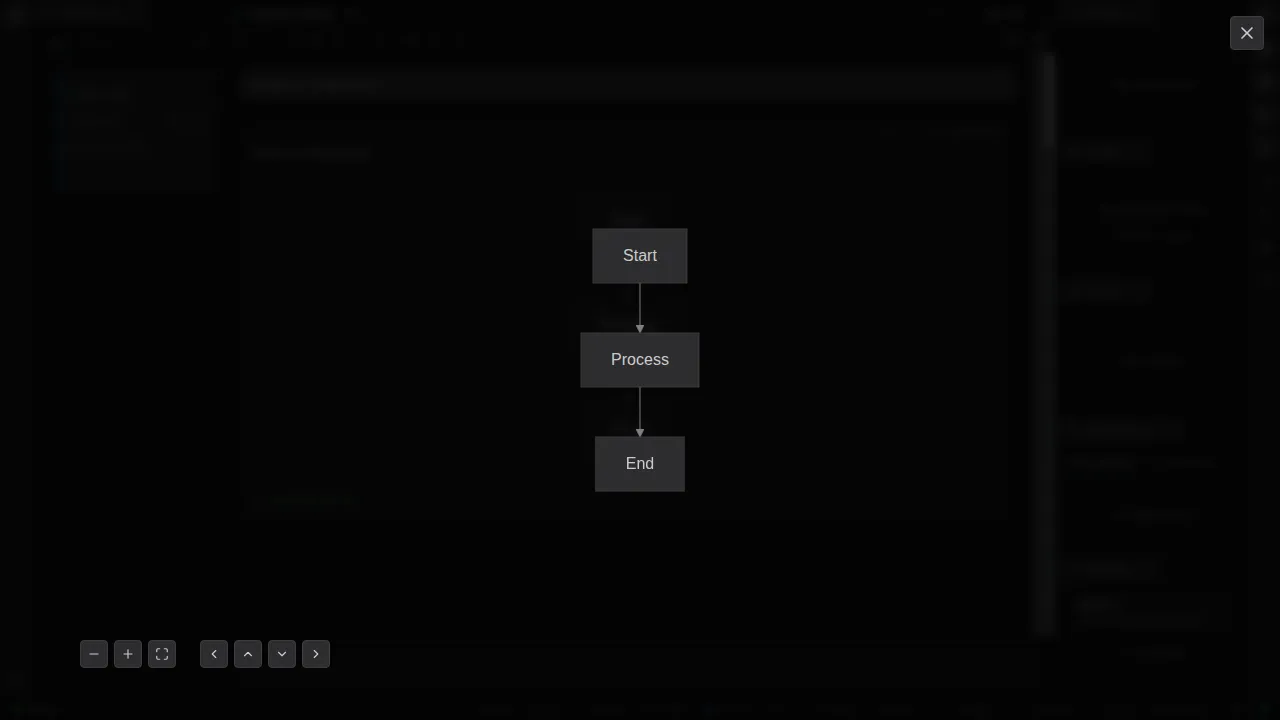

A Mermaid diagram opened in the zoom overlay, its controls in the corner
